Products

TG330

Our TG330 fin tube heat exchanger is a catalog product with various options available to suit your needs.

The stainless steel heat exchanger tubes are available in: 304, 310, 316, 254 SMO, Inconel and additional options.

The inlet and outlet can be customized according to customer’s needs. Frames can also be adjusted as necessary.

The fins can be made of aluminum, coated aluminum, copper or stainless steel.

Our stainless steel heat exchangers are top of the line products that can be used for many applications including, but not limited to:

  • All laser applications, aesthetic lasers, medical lasers, dental lasers and others.
  • Deionized water applications
  • All fuel cell applications
  • Hot temperature gas cooling
  • High corrosive gases
  • Gas to gas applications
  • Gas to liquid applications

This high temperature heat exchanger is capable of a working temperature of 1100 degrees Celsius /2100 degrees Fahrenheit.

As stainless steel heat exchanger manufactures we will work with you to choose all of the correct components for your specific needs.

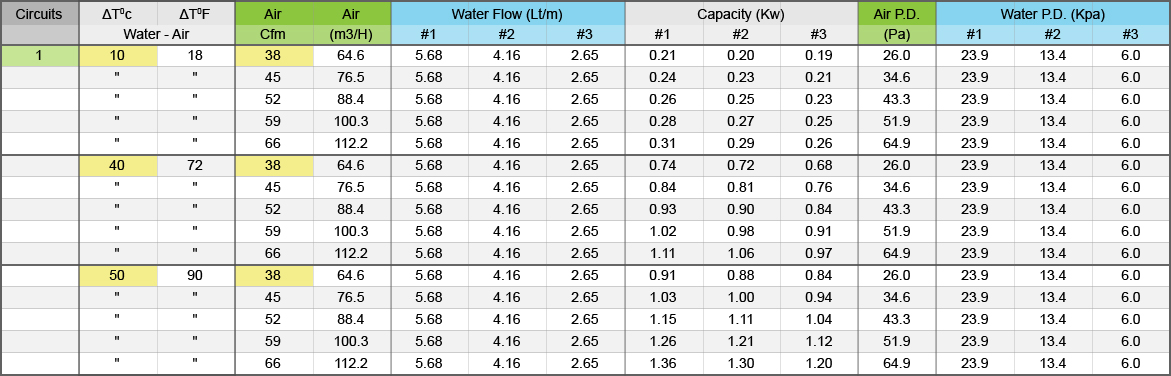

Technical specifications:

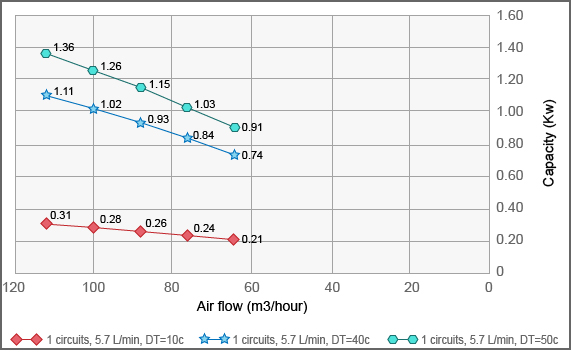

Capacity: 0.21 Kw – 1.2 Kw

Water flow rate: 2.65 liters per minute

Tubes: Stainless steel 304, 310, 316, 254 SMO, Inconel and more

Fins: aluminum, coated aluminum, copper, stainless steel

Rows: 2 or 3

Finishing: Cleaned and passivated, 100% leak tested, lifetime warranty for laser applications.

Custom Heat Exchangers

At Thermogym, we pride ourselves on creating a custom experience for each customer. We will design and manufacture the best stainless steel heat exchanger while remaining cost-effective.

Our high temperature heat exchangers can be used for a variety of applications including:

  • All laser applications, aesthetic lasers, medical, dental lasers and others.
  • Deionized water applications
  • All fuel cell applications
  • Hot temperature gas cooling
  • High corrosive gases
  • Gas to gas applications
  • Gas to liquid applications
  • High pressure applications up to 500 bar working pressure

Customized products can be based on our catalog models or built from scratch. Our engineers will make all necessary thermal calculations for all applications as well as the mechanical designs in 2D and/or 3D.

If you have specific needs, don’t compromise on anything less than the best. Let Thermogym manufacture your perfect heat exchanger at a reasonable price. Contact us today to receive more information and get a quote.

Fin Tube Heat Exchanger TG330 Fin Tube Heat Exchanger TG330 Fin Tube Heat Exchanger TG330 Fin Tube Heat Exchanger TG330 heat exchanger TG330 Fin Tube Heat Exchanger TG-330
