TG830

Our TG830 fin tube heat exchanger is a catalog product with various options available to suit your needs.

The stainless steel heat exchanger tubes are available in: 304, 310, 316, 254 SMO, Inconel and additional options.

The inlet and outlet can be customized according to customer’s needs. Frames can also be adjusted as necessary.

The fins can be made of aluminum, coated aluminum, copper or stainless steel.

Our stainless steel heat exchangers are top of the line products that can be used for many applications including, but not limited to:

  • All laser applications, aesthetic lasers, medical lasers, dental lasers and others.
  • Deionized water applications
  • All fuel cell applications
  • Hot temperature gas cooling
  • High corrosive gases
  • Gas to gas applications
  • Gas to liquid applications

This high temperature heat exchanger is capable of a working temperature of 1100 degrees Celsius /2100 degrees Fahrenheit.

As stainless steel heat exchanger manufactures we will work with you to choose all of the correct components for your specific needs.

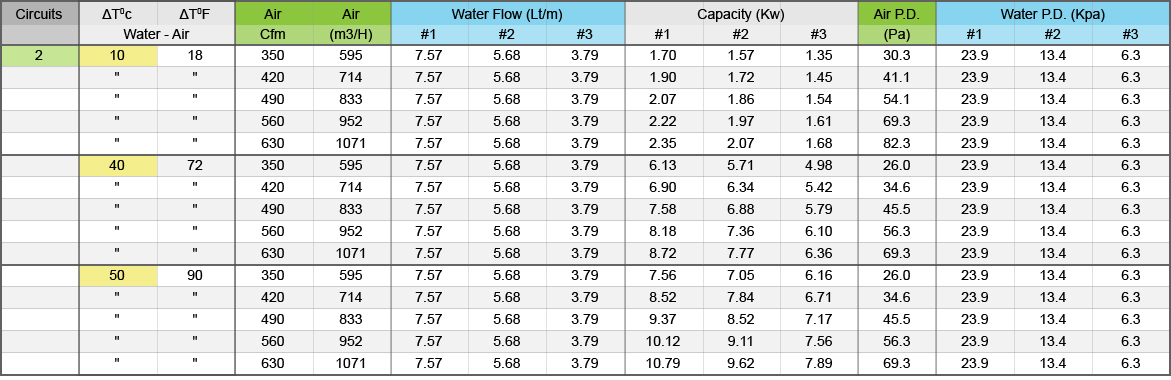

Technical specifications:

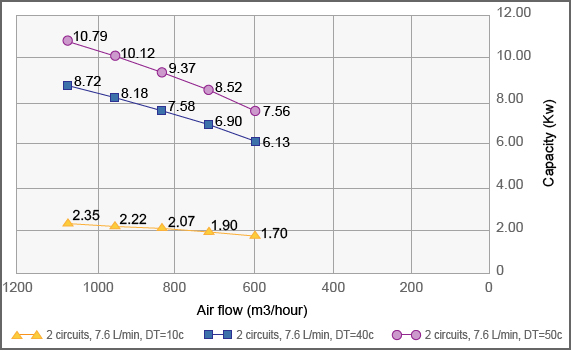

Capacity: 1.35 Kw – 14.48 Kw

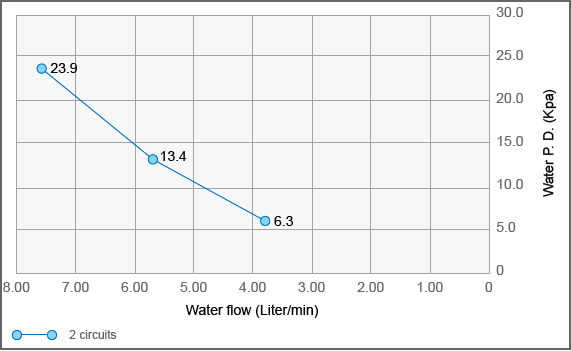

Water flow rate:  3.79 l/m – 18.17 liter per minute

Tubes: 316L Stainless Steel

Fins: aluminum, copper or stainless steel

Rows: 2 or 3

Finishing: Cleaned and passivated, 100% leak tested, lifetime warranty for laser applications.
